Showing 1–16 of 116 results

$9.50

AC voltage sensor

AC voltage sensor
$9.50

AC voltage sensor

AC voltage sensor

Single-phase AC active output voltage mutual inductance module equipped with ZMPT101B series of high-precision voltage transformer and high-precision op amp current, easy to 250v within the AC power signal acquisition.
Voltage Transformer: Onboard Precision Micro Voltage Transformer
Mode voltage output: the module can measure AC voltage within 250V, the corresponding output mode can be adjusted
Output signal: the output signal for the sine wave, the waveform of the median (DC component)
Supply voltage: 5-30v

$5.00

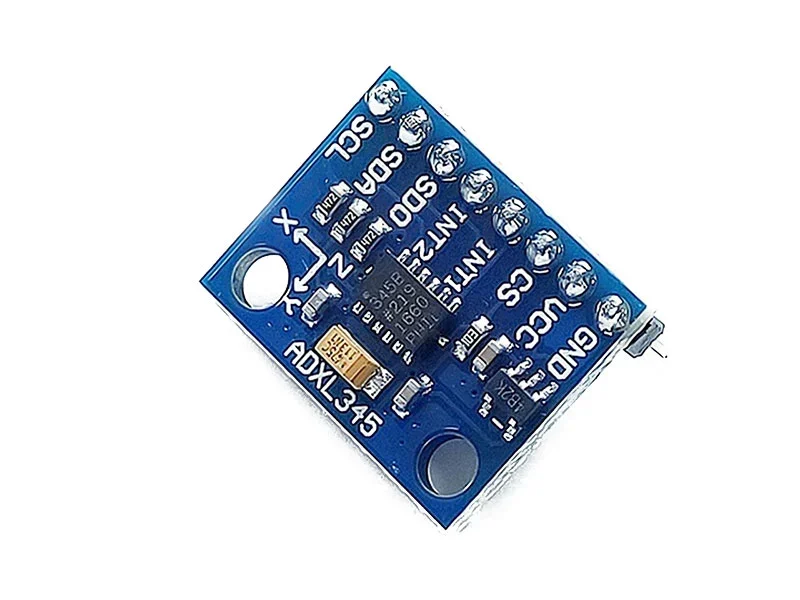

Accelerometer/Tilt sensor ADXL 345

Accelerometer/Tilt sensor ADXL 345
$5.00

Accelerometer/Tilt sensor ADXL 345

Accelerometer/Tilt sensor ADXL 345
$5.00

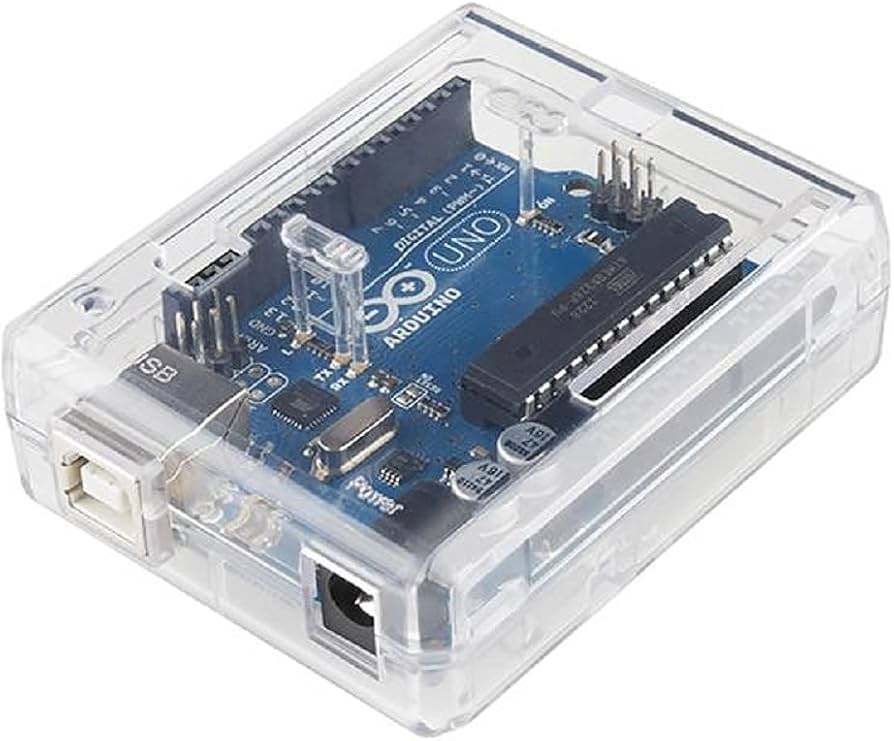

Acrylic Case /Enclosure

Acrylic Case /Enclosure
$5.00

Acrylic Case /Enclosure

Acrylic Case /Enclosure

1 x installation drawing
1 x R3 Acrylic Case Enclosure

$6.00

Acrylic Case /Enclosure For Arduino Mega

Acrylic Case /Enclosure For Arduino Mega
$6.00

Acrylic Case /Enclosure For Arduino Mega

Acrylic Case /Enclosure For Arduino Mega
$5.00

Adapter Converter Tssop28 DIP

Adapter Converter Tssop28 DIP
$5.00

Adapter Converter Tssop28 DIP

Adapter Converter Tssop28 DIP

The LCQT-TSSOP28 is a 35.56 x 17.78mm 28-TSSOP to 28-DIP quick turn small outline Prototyping Adapter which mates with TSSOP28 package to standard breadboard and breakout board for rapid and easy prototyping. This prototyping adapter is made of 1.58mm FR-4, approved by UL 94V-0 standard with 1/2oz Cu traces board. The pins are made of brass 360 1/2-hard as per UNS C36000 ASTM-B16-00 standard with Au flash finish and the pin is insulated with polyester as per UL 94V-0 standard.
SOP28/SSOP28/TSSOP28 0.65mm/1.27 mm to DIP adapter
Color: Green
Material: Glass Fiber FR4-side
Dimensions: 35 x 20 mm
Weight: 5 g

$25.00Add to cart

$25.00

Arduino AT Mega 2560 R3

Arduino AT Mega 2560 R3
$25.00

Arduino AT Mega 2560 R3

Arduino AT Mega 2560 R3

Operating Voltage 5V
Input Voltage(recommended) 7-12V
Digital I/O Pins 54(of which 14 provide PWM output)
Analog Input Pins 16
DC Current per I/O Pin 40mA
Flash Memory 256KB
DC Current for 3.3 V Pin 50 mA

$25.00Add to cart

$15.00Add to cart

$15.00

Arduino Ethernet Shield

Arduino Ethernet Shield
$15.00

Arduino Ethernet Shield

Arduino Ethernet Shield

•Operating voltage 5V (supplied from the Arduino Board)
• Ethernet Controller: W5100 with internal 16K buffer
•Connection speed: 10/100Mb
• Connection with Arduino on SPI port

$15.00Add to cart

$9.00

Arduino Nano V3 CH340

Arduino Nano V3 CH340
$9.00

Arduino Nano V3 CH340

Arduino Nano V3 CH340

1. 20 digital input/output port RX and TX, D2 ~ D13, A0 ~ A5
2. 8 analog input port A0 ~ A7
3. 6 PWM port, D3, D5, D6, D9, D10, D11
4. Support serial download and ISP download
5. Support external 3.3V ~ 12V dc power supply

$9.00

Arduino Promini

Arduino Promini
$9.00

Arduino Promini

Arduino Promini

• ATmega328 running at 16MHz with external resonator (0.5% tolerance)
• USB connection off board
• Supports auto-reset
• Max 150mA output
• Over current protected
• Reverse polarity protected
• DC input 5V up to 12V
• On board Power and Status LEDs

$15.00Add to cart

$15.00

Arduino Uno R3 Mega 328p

Arduino Uno R3 Mega 328p
$15.00

Arduino Uno R3 Mega 328p

Arduino Uno R3 Mega 328p

Operating Voltage: 5V
Input Recommended Voltage: 5V – 9V (Max 12V)
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB (ATmega328)
length :68.6 mm
width :53.4 mm
weight : 25g

$15.00Add to cart

$8.00

ATMega 328p Chip

ATMega 328p Chip
$8.00

ATMega 328p Chip

ATMega 328p Chip

The Atmega328 is one of the microcontroller chips that are used with the popular Arduino Duemilanove boards. Of these 2, the Atmega328 is the upgraded, more advanced chip. Unlike the Atmega168 which has 16K of flash program memory and 512 bytes of internal SRAM, the Atmega328 has 32K of flash program memory and 2K of Internal SRAM.
Program Memory Type Flash
Program Memory (KB) 32
CPU Speed (MIPS) 20
RAM Bytes 2,048
Data EEPROM (bytes) 1024
Timers 2 x 8-bit, 1 x 16-bit
Temperature Range (C) -40 to 85
Operating Voltage Range (V) 1.8 to 5.5
Pin Count 32
Low Power Yes
Cap Touch Channels 16

Placeholder

$10.00Add to cart

$10.00

ATTINY 85 DEVELOPMENT BOARD

ATTINY 85 DEVELOPMENT BOARD
$10.00

ATTINY 85 DEVELOPMENT BOARD

ATTINY 85 DEVELOPMENT BOARD

Development board on ATtiny85, similar to the Arduino line, only cheaper, compact, lower power consumption and a bit less powerful. The board supports use of specific Arduino IDE and conveniently uses Arduino syntax for programming. This is a great way to jump into electronics and also perfectly fits when an Arduino is too big. Support for the Arduino IDE 1.0+ (OSX / Win / Linux) Power via USB or External Source – 5V or 7 -35V (automatic selection) On-board 500ma 5V Regulator Built-in USB(and serial debugging) 6 I/O Pins (2 are used for USB only if your program actively communicates over USB otherwise you can use all 6 even if you are programming via USB) 8k Flash Memory (about 6K after bootloader)

$10.00Add to cart

$10.00Add to cart

$10.00

ATTINY 85 IC

ATTINY 85 IC
$10.00

ATTINY 85 IC

ATTINY 85 IC

The high-performance, low-power Microchip 8-bit AVR RISC-based microcontroller combines 8KB ISP flash memory, 512B EEPROM, 512-Byte SRAM, 6 general purpose I/O lines, 32 general purpose working registers, one 8-bit timer/counter with compare modes, one 8-bit high speed timer/counter, USI, internal and external Interrupts, 4-channel 10-bit A/D converter, and programmable watchdog timer with internal oscillator
Capture/PWM Peripherals 5PWM
Timers 2 x 8-bit
Number of Comparators 1
Temperature Range (C) -40 to 85
Operating Voltage Range (V) 1.8 to 5.5
Pin Count 8

$10.00Add to cart

$7.00

Audio Amplifier LME49710NA

Audio Amplifier LME49710NA
$7.00

Audio Amplifier LME49710NA

Audio Amplifier LME49710NA

The LME49710 is part of the ultra-low distortion high slew rate opamps optimized and fully specified for high-performance, Combining advanced leading-edge process technology with state-of-the-art circuirt design, LME49710 delivers superior audio amplification for outstanding audio performance.
Common Mode Rejection Ratio 110 dB
Dual Supply Voltage 15 V
Gain Bandwidth Product 55 MHz
Input Bias Current 7 nA
Input Offset Voltage (Vos) 50 μV
Load Impedance 2 kΩ
Max Supply Voltage 34 V
Min Dual Supply Voltage 2.5 V
Min Supply Voltage 5 V
Nominal Supply Current 4.8 mA

$11.00Add to cart

$11.00

Bluetooth Module HC- 05

Bluetooth Module HC- 05
$11.00

Bluetooth Module HC- 05

Bluetooth Module HC- 05

HC‐05 module is an easy to use Bluetooth SPP (Serial Port Protocol) module,designed for transparent wireless serial connection setup.The HC-05 Bluetooth Module can be used in a Master or Slave configuration, making it a great solution for wireless communication.This serial port bluetooth module is fully qualified Bluetooth V2.0+EDR (Enhanced Data Rate) 3Mbps Modulation with complete 2.4GHz radio transceiver and baseband.) • Typical ‐80dBm sensitivity. • Up to +4dBm RF transmit power. • 3.3 to 5 V I/O. • PIO (Programmable Input/Output) control. • UART interface with programmable baud rate. • With integrated antenna. • With edge connector.

$11.00Add to cart

$11.00Add to cart

$11.00

Bluetooth Module HC- 06

Bluetooth Module HC- 06
$11.00

Bluetooth Module HC- 06

Bluetooth Module HC- 06

The HC-05 or HC-06 Bluetooth Module (Master/Slave) provides a wireless communication link between your Arduino and any bluetooth capable device. It’s ideal replacement to your wired serial connection. It enables a circuit to communicate to another circuit through wireless connectivity. Sending and Receiving of data can be achieved within a range of 10 meters.
The module board has signal conditioning circuit (3.3V compatible) to easily connect the signal pins directly to Arduino boards or any 5V powered device.
Recommended: 3.3V, use potential divider

$11.00Add to cart
